Application range:

High cleanliness of the engine block, cylinder head, transmission case, etc. requires intermediate cleaning and final cleaning of complex parts.

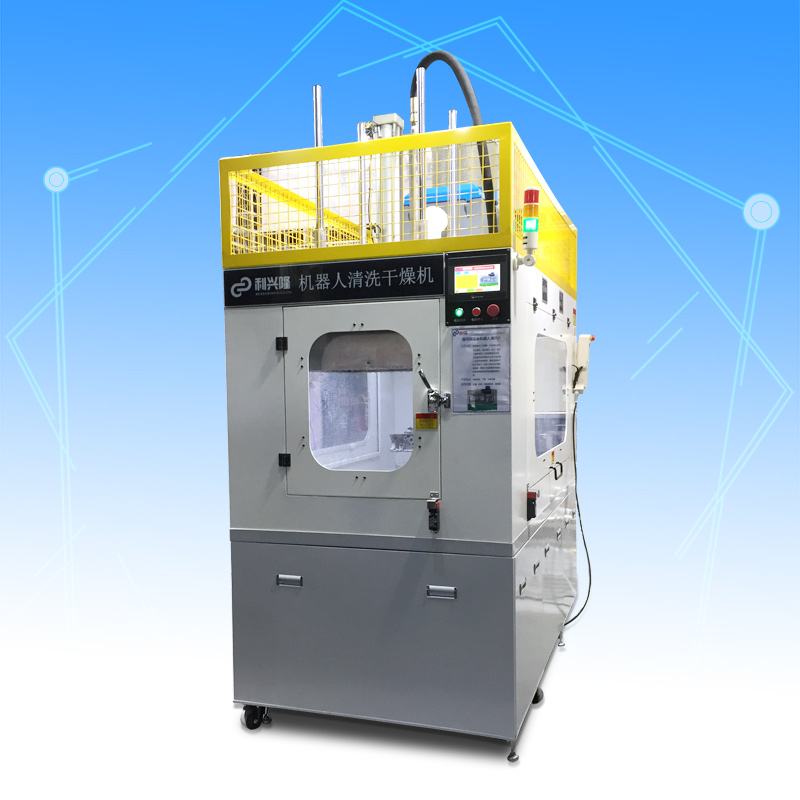

Product introduction: The medium-load six-axis industrial robot system is used for full automatic transfer, cleaning and drying of the workpiece. The order, number of times and posture of the spray parts can be flexibly combined, which is typically applied to the engine block. High cleanliness such as cylinder heads and gearbox housings require intermediate cleaning and final cleaning of complex parts.

The cleaning robot grabs the workpiece from the automatic loading rail and automatically transfers it to the cleaning station for high-pressure cleaning and medium-pressure turbulent cleaning in a special posture. After cleaning, it is moved to the middle placement table, and the robot can realize special hole and surface brushing. And the deburring process, the blowing robot grabs the workpiece from the middle placement table, automatically transfers it to the blowing station for fixed positioning and drying, and automatically transfers to the automatic feeding chute after the drying.

Cleanliness: The residual particle size of the oil passage hole is less than 5mg

           Residual particle size on the surface and other parts is less than 15mg

 Features: Flexible mixing line production, automatic identification and switching cleaning procedures

            The robot automatically switches the jaws and corresponds to multiple models.

            The robot can easily realize various special actions during the cleaning and drying process, and fully guarantee the final result.

(Waterproof robot arranged in the equipment, protection class IP67; using world famous brand jaws, fully guaranteeing reliability)
